Large tonnage forklift cylinder

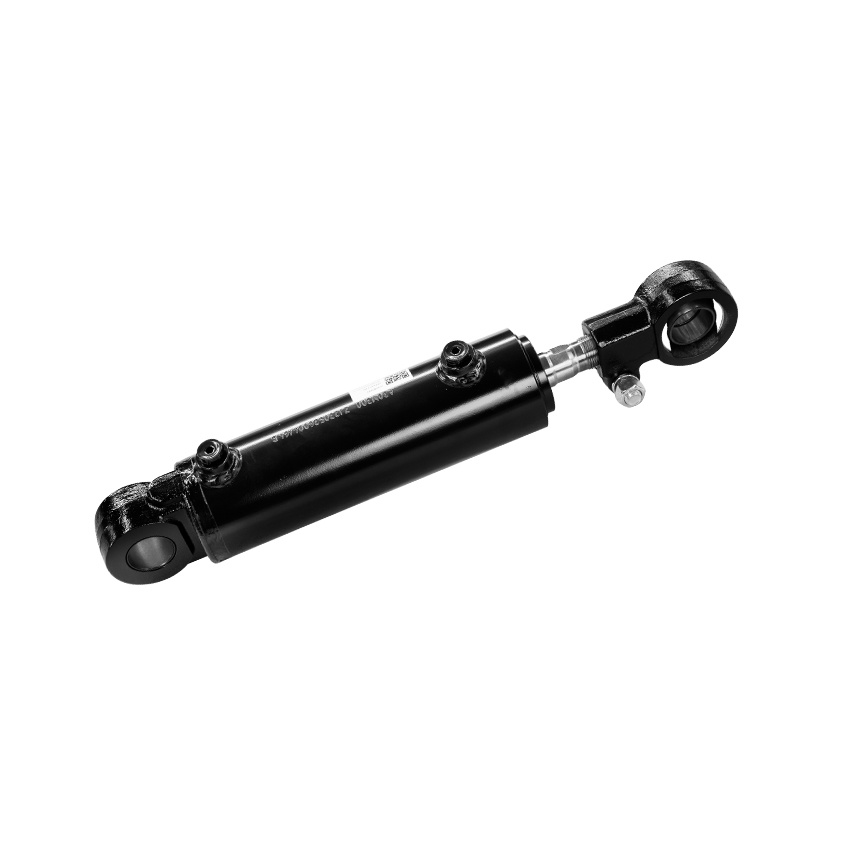

Tilt cylinder

Function: realize the forward and backward tilting action of the forklift mast.

Cylinder diameter: 90mm-220mm

Rod diameter: 45mm-100mm

Stroke: 37mm-363mm

Maximum pressure : 27MPa

Maximum thrust : 1026KN

Lifting cylinder

Function: Realize the lifting and lowering action of the mast.

Cylinder diameter: 65mm-190mm.

Rod diameter: 50mm-160mm.

Stroke: 100mm-3490mm.

Maximum pressure: 21MPa.

Maximum thrust: 596KN.

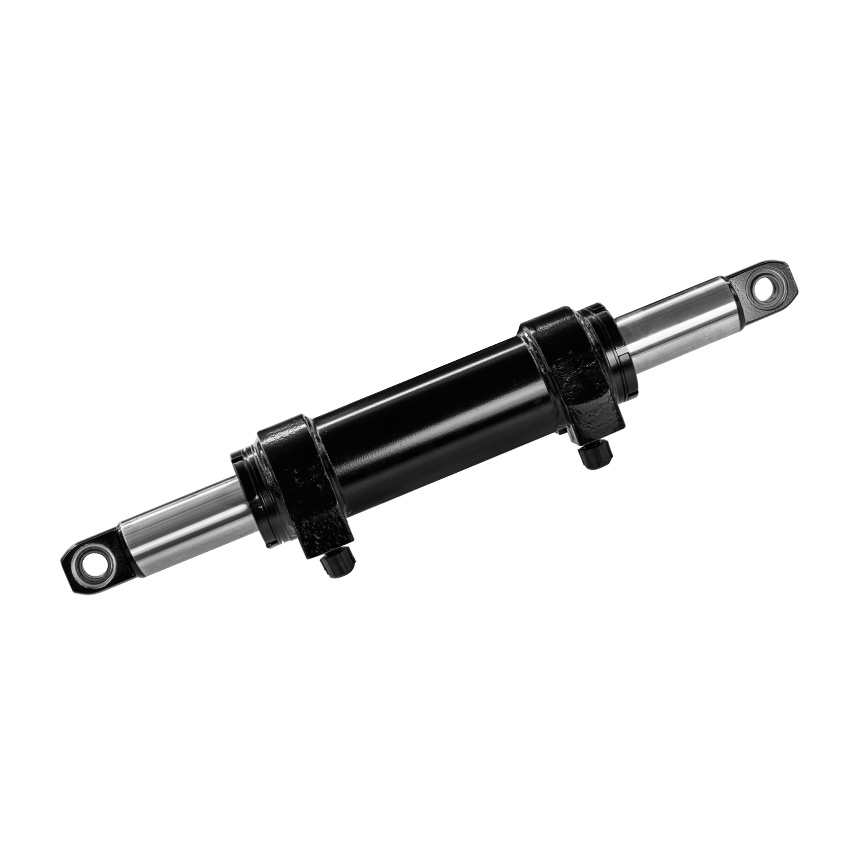

Steering cylinder

Function: realize forklift steering axle movement, realize forklift tire steering

Cylinder bore: 80mm-160mm

Rod diameter: 50mm-110mm

Stroke: 71mm*2-235mm*2

Maximum pressure: 18MPa

Maximum thrust: 362KN

Side shift cylinder

Function: used to realize the overall left and right movement of the fork.

Cylinder diameter: 70mm-120mm

Rod diameter: 30mm-60mm

Stroke: 300mm-1025mm

Maximum pressure: 21MPa

Maximum thrust: 238KN
