Truck crane cylinder

Luffing cylinder

Function: Control the action of the main arm.

Cylinder diameter: 180mm-220mm

Rod diameter: 110mm-180mm

Stroke: 1000mm-2000mm

Maximum pressure: 25MPa

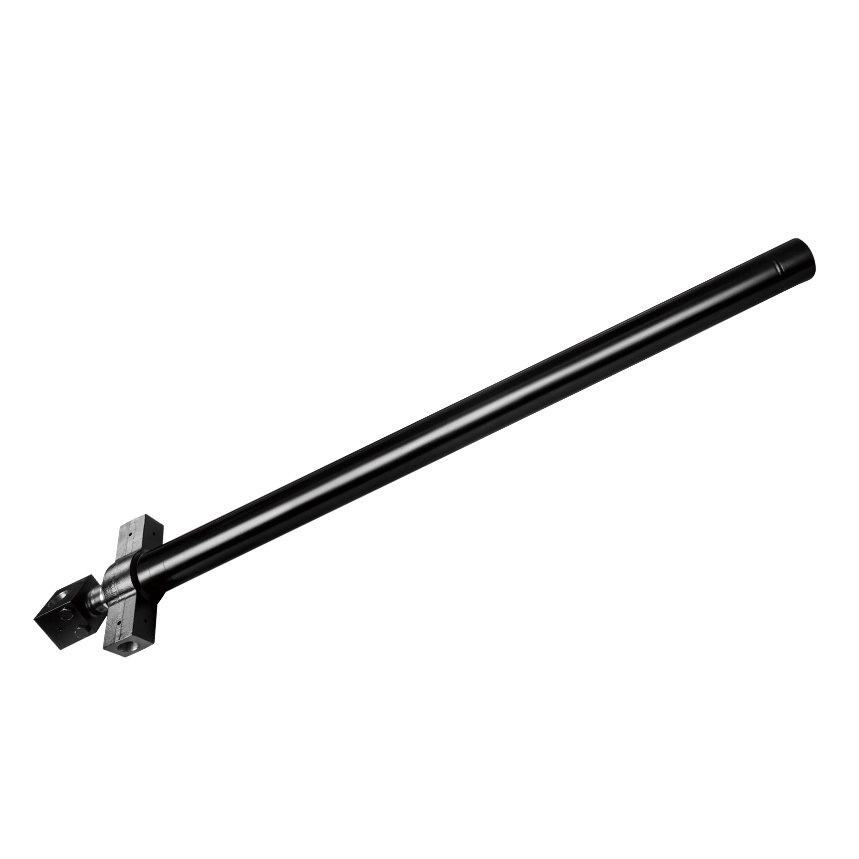

Horizontal cylinder

Function: Control the action of the main arm.

Cylinder diameter: 63mm-70mm.

Rod diameter: 45mm-50mm.

Stroke: 1200mm-2000mm.

Maximum pressure Mpa: 20MPa.

Maximum thrust KN: 77KN.

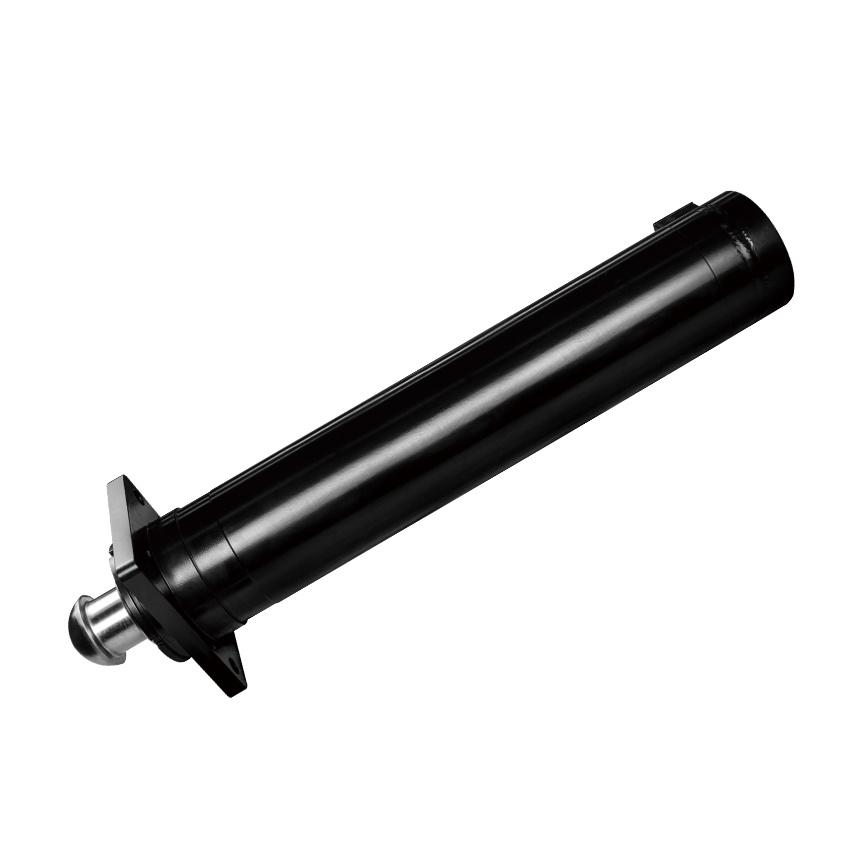

Outrigger cylinder

Function: Support

Cylinder diameter: 63mm-150mm

Rod diameter: 45mm-120mm

Stroke: 600mm-2000mm

Maximum pressure: 20MPa

Maximum thrust: 353KN

Counterweight cylinder

Function: Control the action of the counterweight.

Cylinder diameter: 160mm-180mm.

Rod diameter: 90mm-150mm.

Stroke: 180mm-400mm.

Maximum pressure: 25MPa.

Maximum thrust: 1540KN.
