Boom anti-reverse cylinder Function: Control the arm's action Cylinder: 100mm-320mm Rod diameter: 85mm-220mm Stroke: 1200mm-3550mm Maximum pressure: 31.5MPa Maximum thrust: 2533KN
|
Outrigger cylinder Function: Support Cylinder diameter: 100mm-300mm Rod diameter: 80mm-220mm Stroke: 700mm-800mm Maximum pressure: 31.5MPa Maximum thrust: 2226KN
|

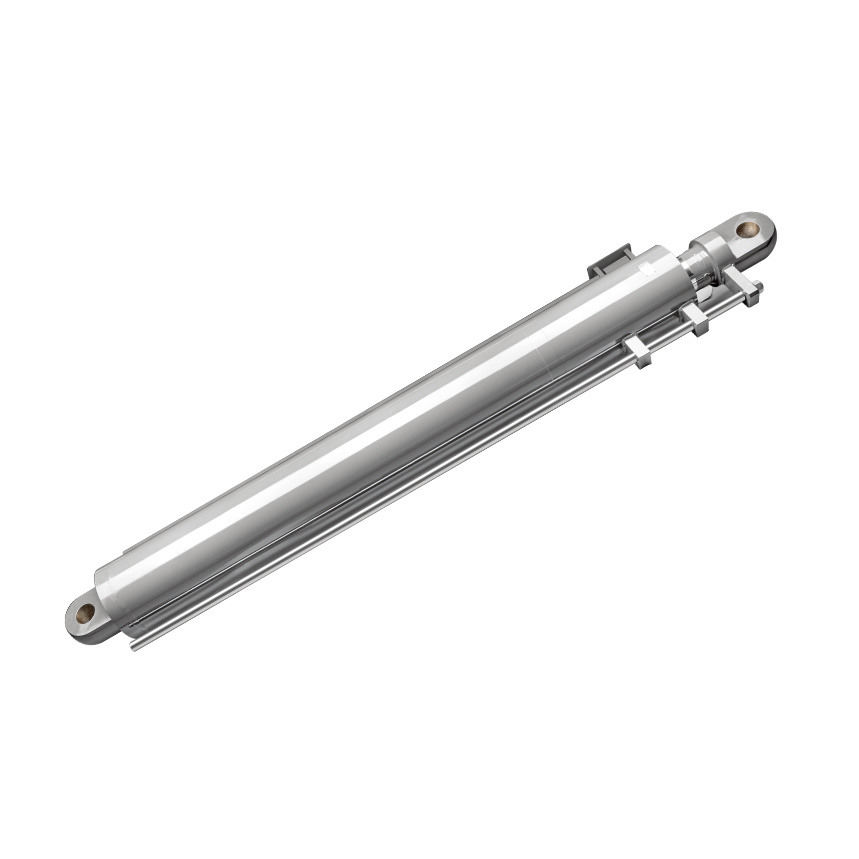

Lifting cylinder Function: Control the action of the main arm. Cylinder diameter: 280mm-400mm Rod diameter: 160mm Stroke: 1800mm-3000mm Maximum pressure: 31.5MPa Maximum thrust: 3958KN
|

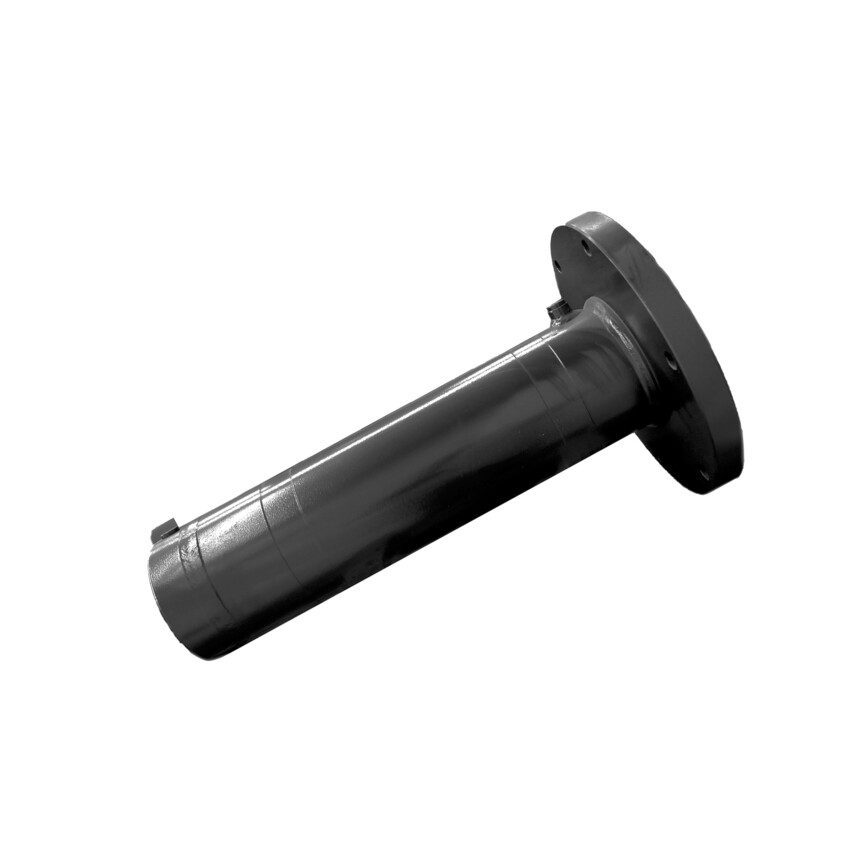

Pin cylinder
Function: Winter Solstice pin action
Cylinder diameter: 80mm Rod diameter: 40mm Stroke: 200mm-530mm Maximum pressure: 25MPa Maximum thrust: 125KN
|

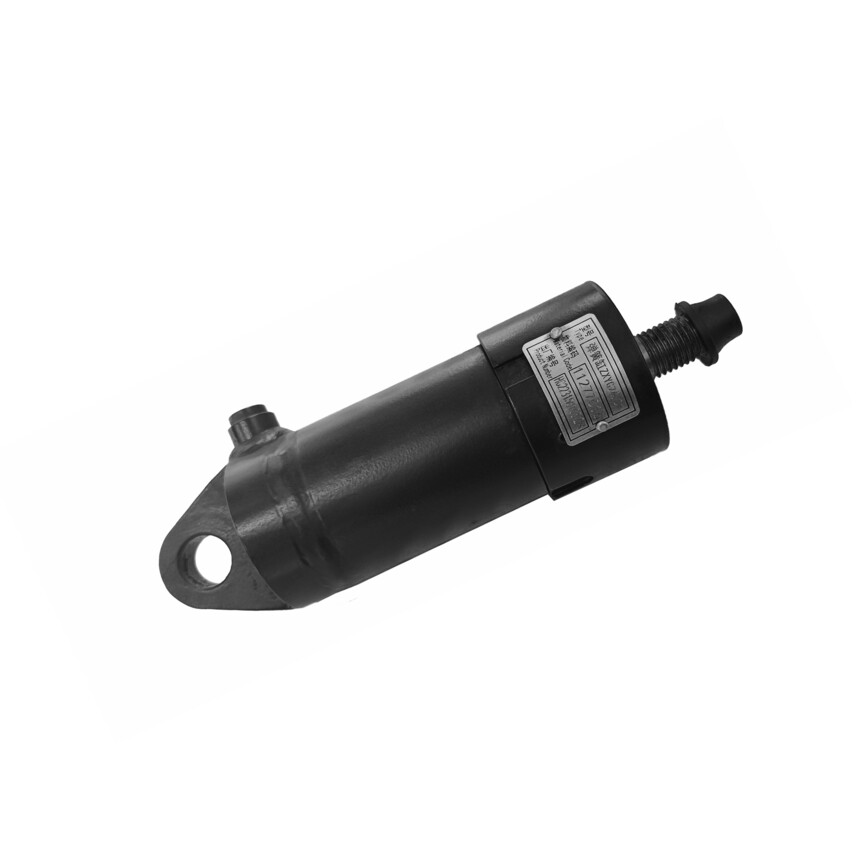

Spring cylinder Function: Buffering Cylinder diameter: 50mm-63mm Rod diameter: 32mm Stroke: 25mm-60mm Maximum pressure: 6MPa Maximum thrust: 19KN
|

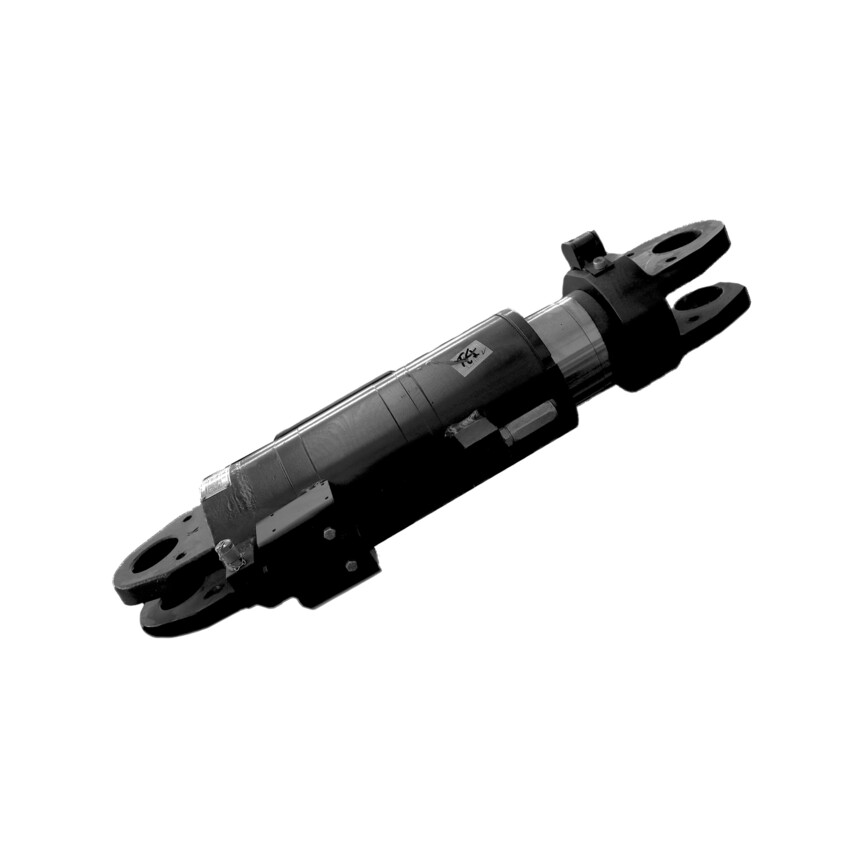

Oil cylinder Function: Buffering Cylinder diameter: 120mm-300mm Rod diameter: 100mm-280mm Stroke: 148mm-320mm Maximum pressure: 40MPa Maximum thrust: 2463KN
|
